Bernoulli Equation Pressure Loss. The basic approach to all piping systems is to write the bernoulli equation between two points, connected by a streamline, where the conditions are known. For bernoulli applications, please see our bernoulli calculator with applications.

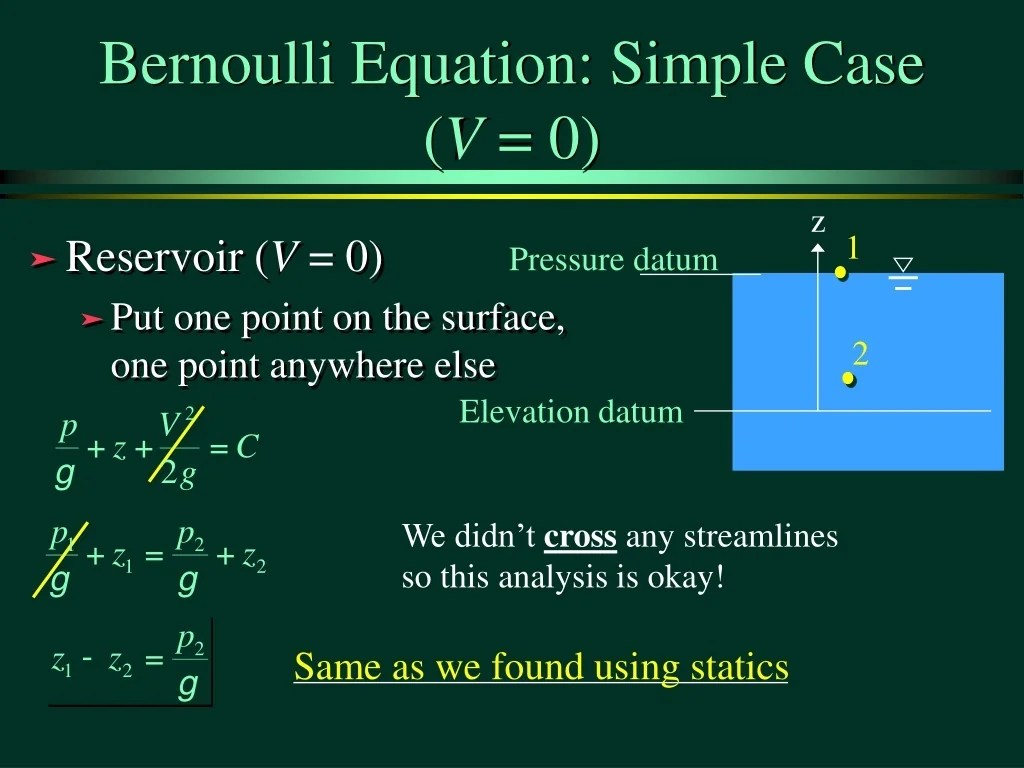

PPT Elementary Fluid Dynamics The Bernoulli Equation from www.slideserve.com

The bernoulli’s equation can be considered to be a statement of the conservation of energy principle appropriate for flowing fluids. Since the velocity at the stagnation point is zero, the stagnationor totalpressure, p_0, is the pressure measured at. 2 2 0 21 0 0 loss 2 s v + + =++ − −gz gz w.

Source: present5.com

Head loss is a loss in pressure head due to the viscosity of a fluid and obstructions to a fluid such as pipe elbows, valves, etc. Friction is included as a term in the bernoulli equation (usually on the right hand side) because it represents a fraction of the overall total energy at a point in the system, although it has been lost in between those two points.

Source: www.tessshebaylo.com

This page provides a quick review of piping losses, starting with bernoulli's equation. Bernoull’s energy equation is bernoulli’s equation divided by the fluid’s specific weight.

Source: www.slideserve.com

The constant sum of these pressures is also called total pressure p tot. Is easily done for flow through pipes by adding some terms to the bernoulli equation:

Source: www.slideserve.com

The pressure is being lost (actually the pressure energy) due to friction as the flow moves along the pipe. Heat radiation ) are small and can be neglected.

Source: www.slideshare.net

The pressure at point 2 would be lower than the pressure at point 1. The pressure is being lost (actually the pressure energy) due to friction as the flow moves along the pipe.

Source: www.slideserve.com

P = pressure (pa, psi) p loss = pressure loss (pa, psi) p d = 1/2 ρ v 2 = dynamic pressure (pa, psi) Although bernoulli deduced that pressure decreases when the flow speed increases, it was leonhard euler in 1752 who derived bernoulli's equation in its usual form.

Source: www.slideserve.com

Equation (13) is the bernoulli equation including the friction term as a pressure (f p). 2 2 2 2 1 1 2 1 2 2 z g v g p z h h g v g p p l u u note that two terms have been added:

Source: www.slideserve.com

Bernoulli's equation relates the pressure, speed, and height of any two points (1 and 2) in a steady streamline flowing fluid of density. The pressure at point 2 would be lower than the pressure at point 1.

The Steady State Incompressible Energy Equation (Also Known As The Bernoulli Equation) Models A Fluid Moving From Location 1 To Location 2.

2 2 0 21 0 0 loss 2 s v + + =++ − −gz gz w. Equation (13) is the bernoulli equation including the friction term as a pressure (f p). Bernoulli and pipe flow !

Is Easily Done For Flow Through Pipes By Adding Some Terms To The Bernoulli Equation:

The total head at point 0 must match. Bernoulli’s equation is one of the most important/useful equations in fluid mechanics. Bernoulli's equation is usually written as follows, the variables , , refer to the pressure, speed, and height of the fluid at point 1, whereas the variables , , and refer to the pressure, speed, and height.

Where The Point E Is Far Upstream And Point0Is At The Stagnation Point.

Bernoull’s energy equation is bernoulli’s equation divided by the fluid’s specific weight. For bernoulli applications, please see our bernoulli calculator with applications. Although bernoulli deduced that pressure decreases when the flow speed increases, it was leonhard euler in 1752 who derived bernoulli's equation in its usual form.

Using Data From Below Mentioned Example, The Pressure Loss Coefficient (Only Frictional From Straight Pipe) Is Equal To Ξ = F D L/D H = 4.9.

2 2 2 2 1 1 2 1 2 2 z g v g p z h h g v g p p l u u note that two terms have been added: Let us write the engineering bernoulli equation. The loss term h l accounts for all minor (valves, elbows, etc.) and major (pipe friction) losses between 1 and 2.

The Head Loss In Bernoulli’s Equation Is The Representation Of The Reduction In The Total Pressure Which Is The Sum Of The Velocity Head, Pressure Head, And The Elevation Head Of The Fluid Flowing Through The Hydraulic System.

P = pressure of fluid (pa) h pump = head added by pump (m) h friction = head loss due to fluid friction (m) g = acceleration due to gravity (m/s 2) the head loss (or the pressure loss) due to fluid friction (h friction) represents the energy used in overcoming friction caused by the pipe walls. The bernoulli’s equation can be considered to be a statement of the conservation of energy principle appropriate for flowing fluids. The pressure at point 2 would be lower than the pressure at point 1.
